README.md

Angel Wings Keyboard (by @ItzAdel and @nm17)

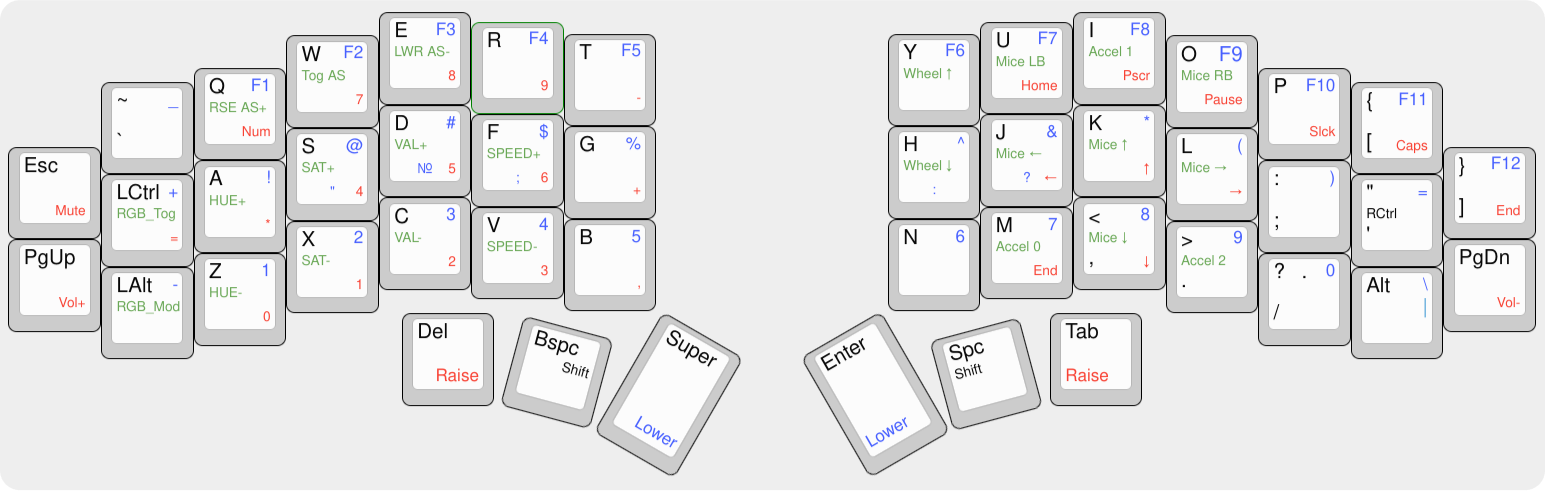

Keymap

The Lower, Raise and Adjust layers are provided to allow you to use full-size keys that are not on this keyboard.

To use one or the other layer, you need to press one of the following keys:

Super/Enter for Lower.
Tab/Delete for Raise
To switch to the Adjust layer, press Enter + Tab / Super + Del

Check wiki for more info

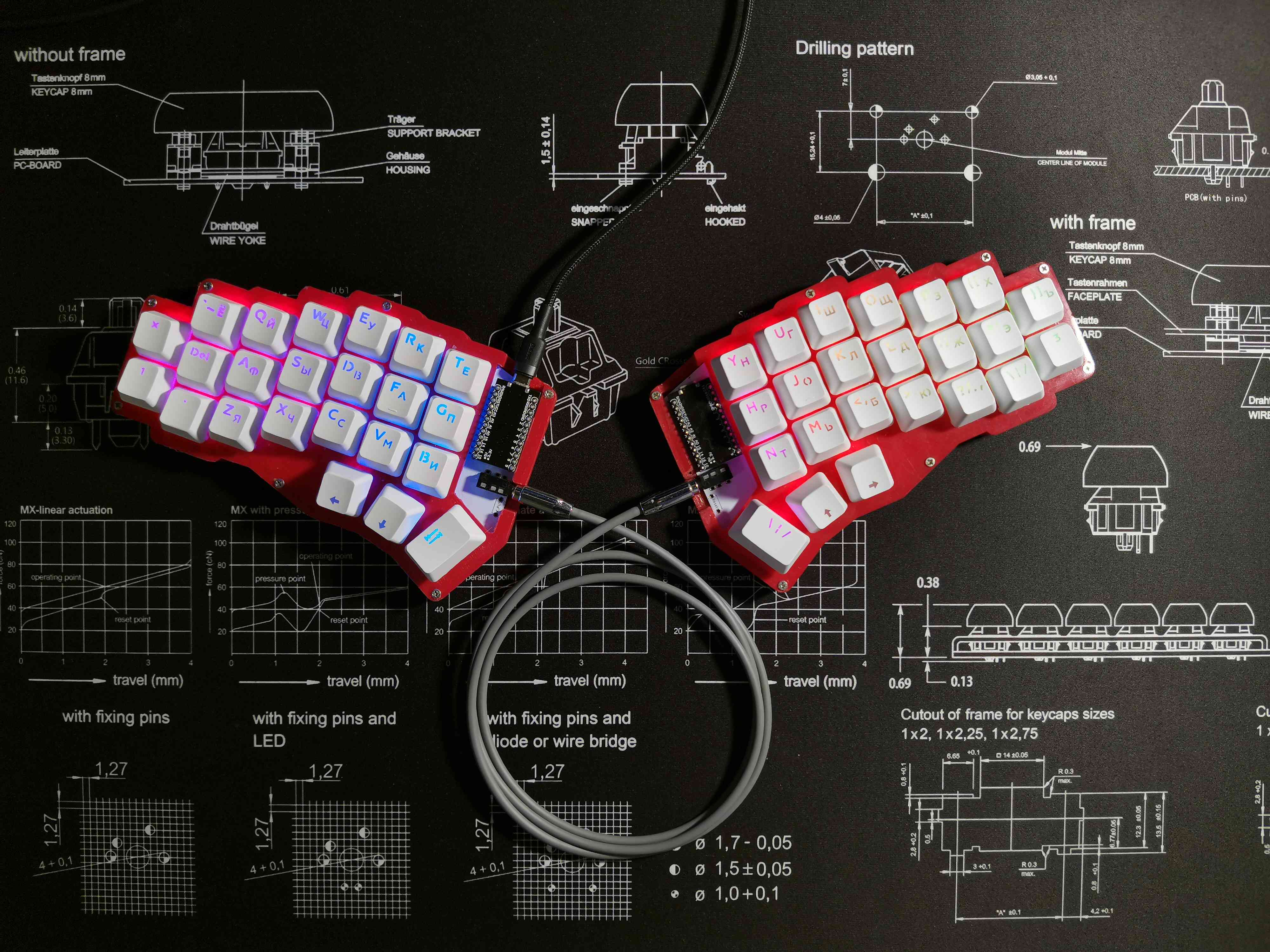

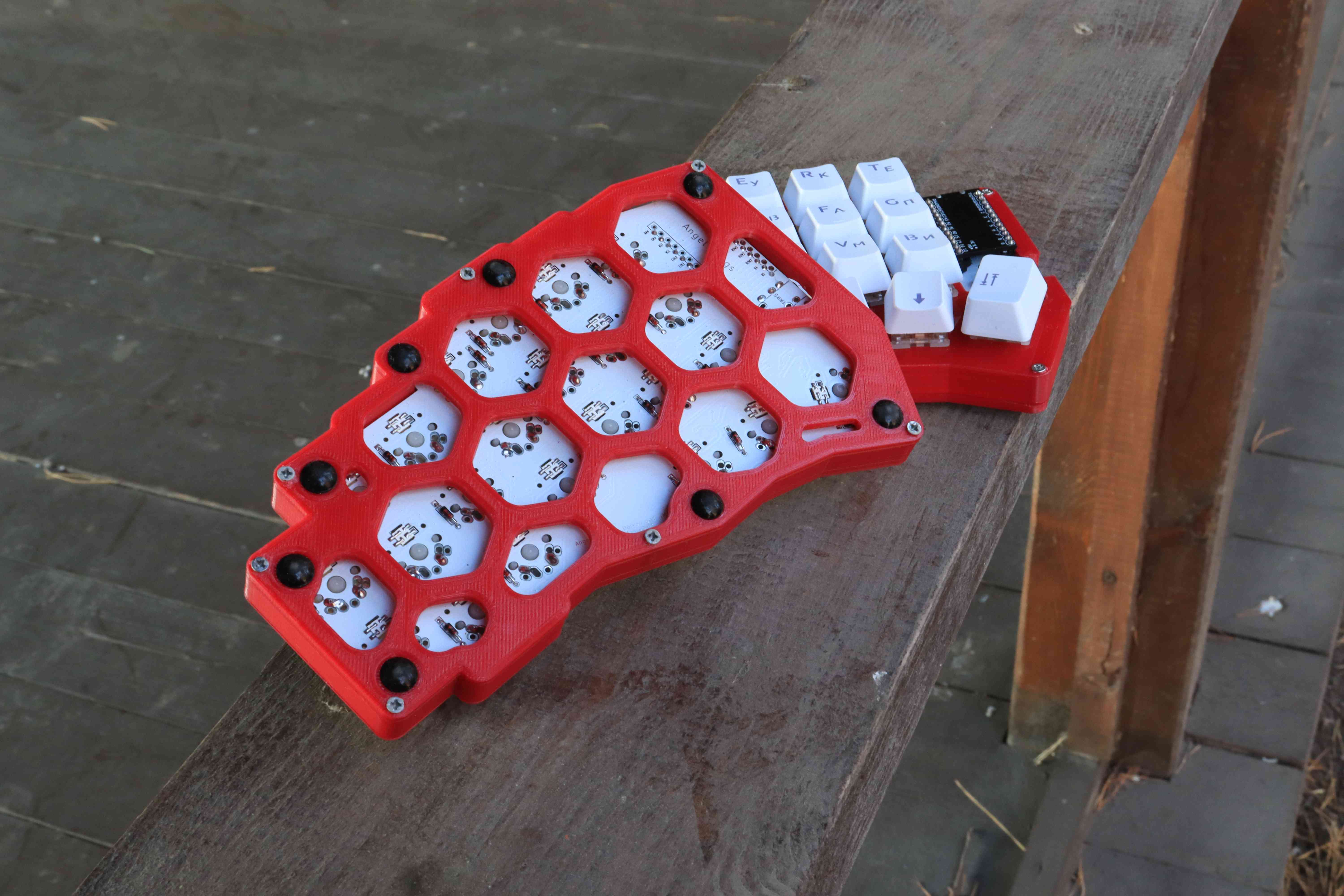

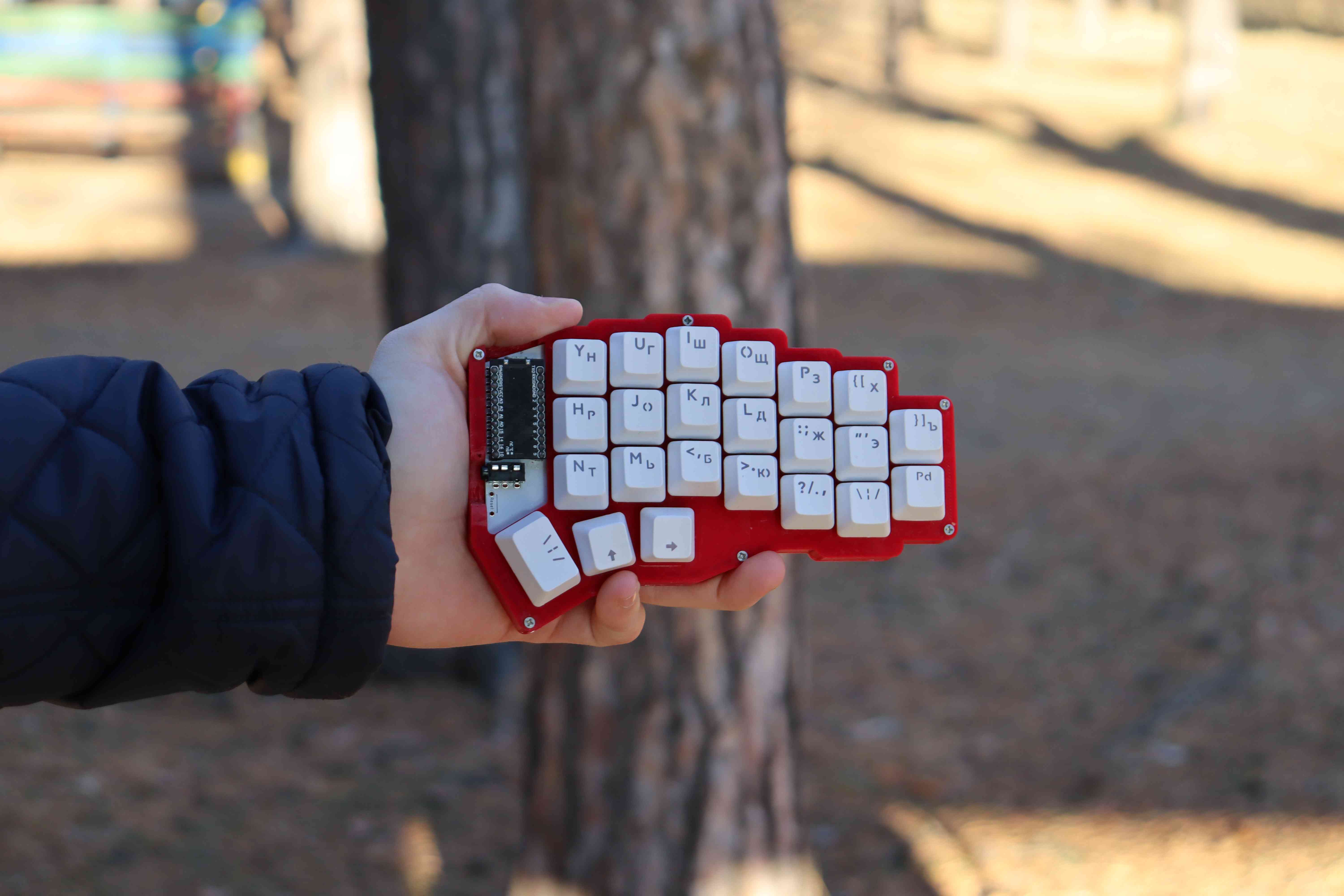

Photos

Nowadays, this repository is archived

Check out updates AWF on my gitea

Check out actual news on Telegram. https://t.me/doryanProjects
