README.md

Angel Wings Keyboard (by @ItzAdel and @nm17)

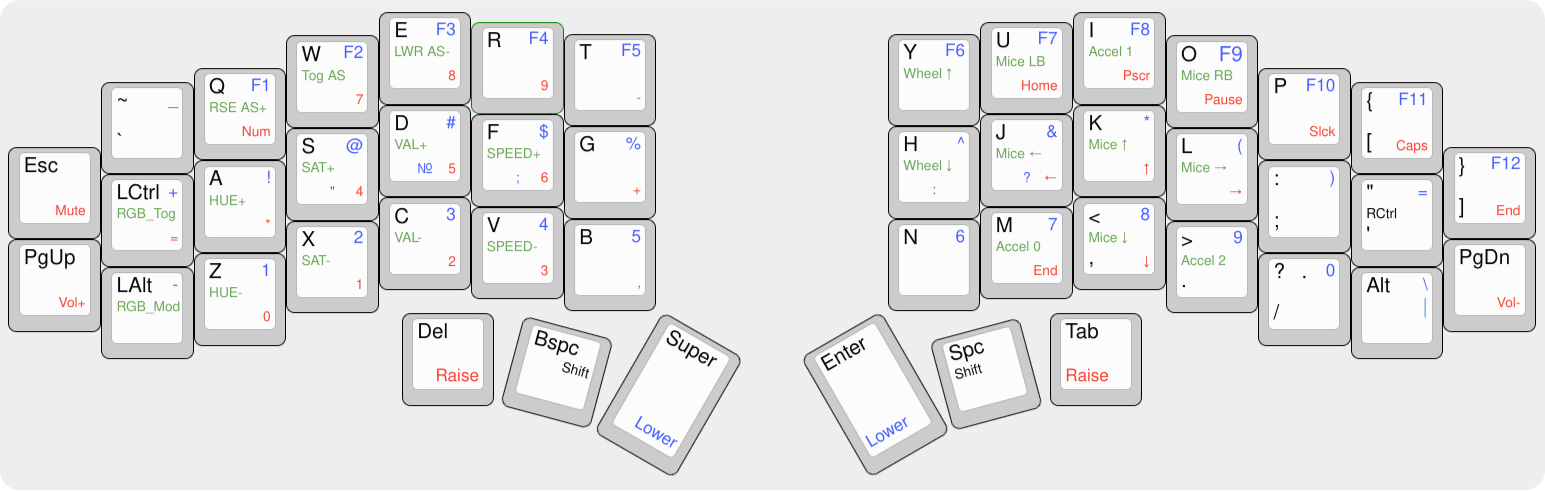

Keymap

The blue symbols on the keymap are the symbols placed on the lower layer. Red is on the raise. Green is on adjust.

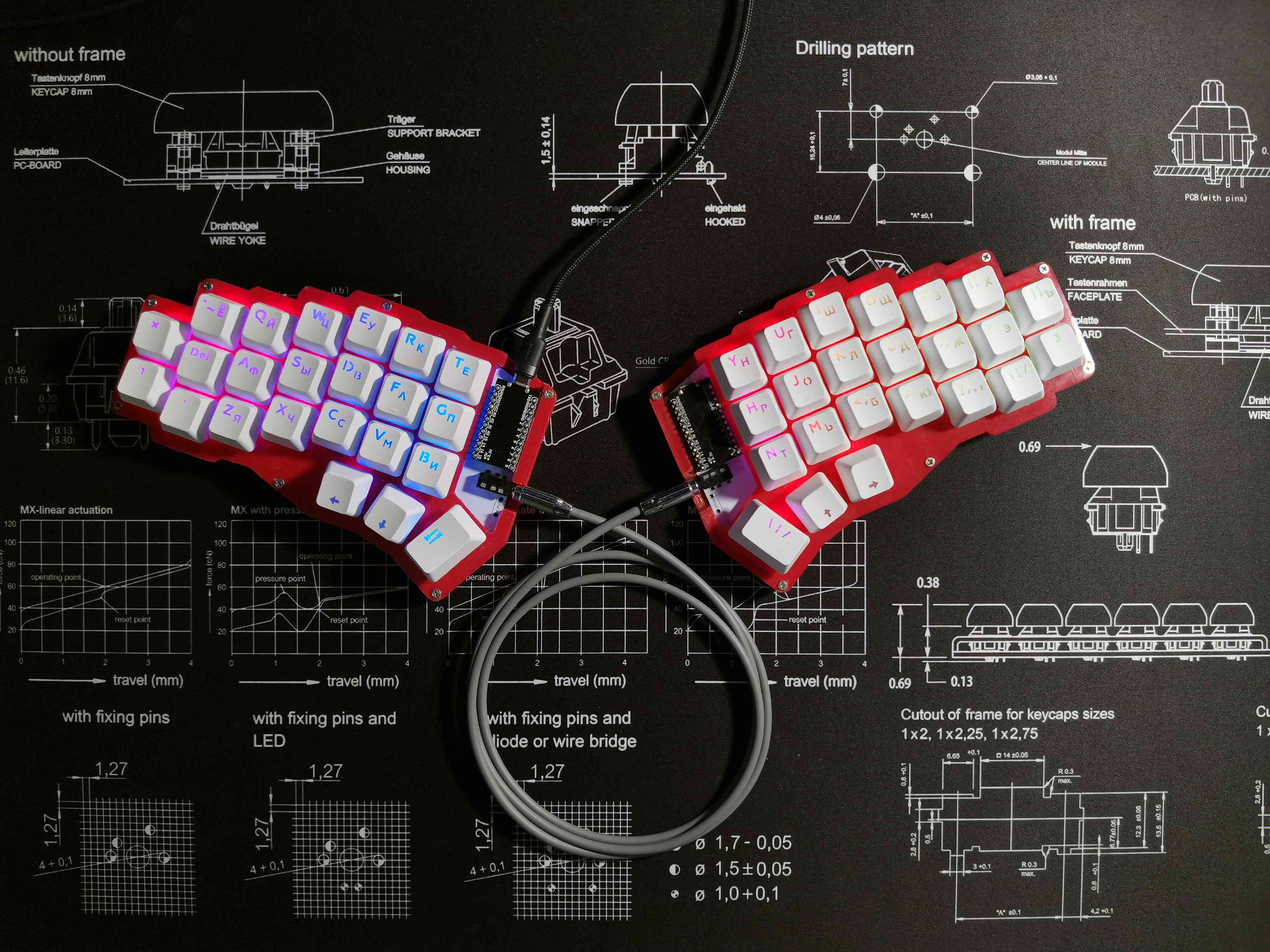

AWF is a ergo-split keyboard with 46 keys, originally designed for a school project.

Check wiki for more info

Check out @tfk004 on Telegram. https://t.me/tfk004
